Generate Conflict Map with CadnaA
A conflict map is a graphical representation showing areas where noise levels exceed established sound limits, facilitating the identification of critical areasand helping to make decisions to mitigate such overcrowding.
The preparation of a conflict map will be explained by an example:

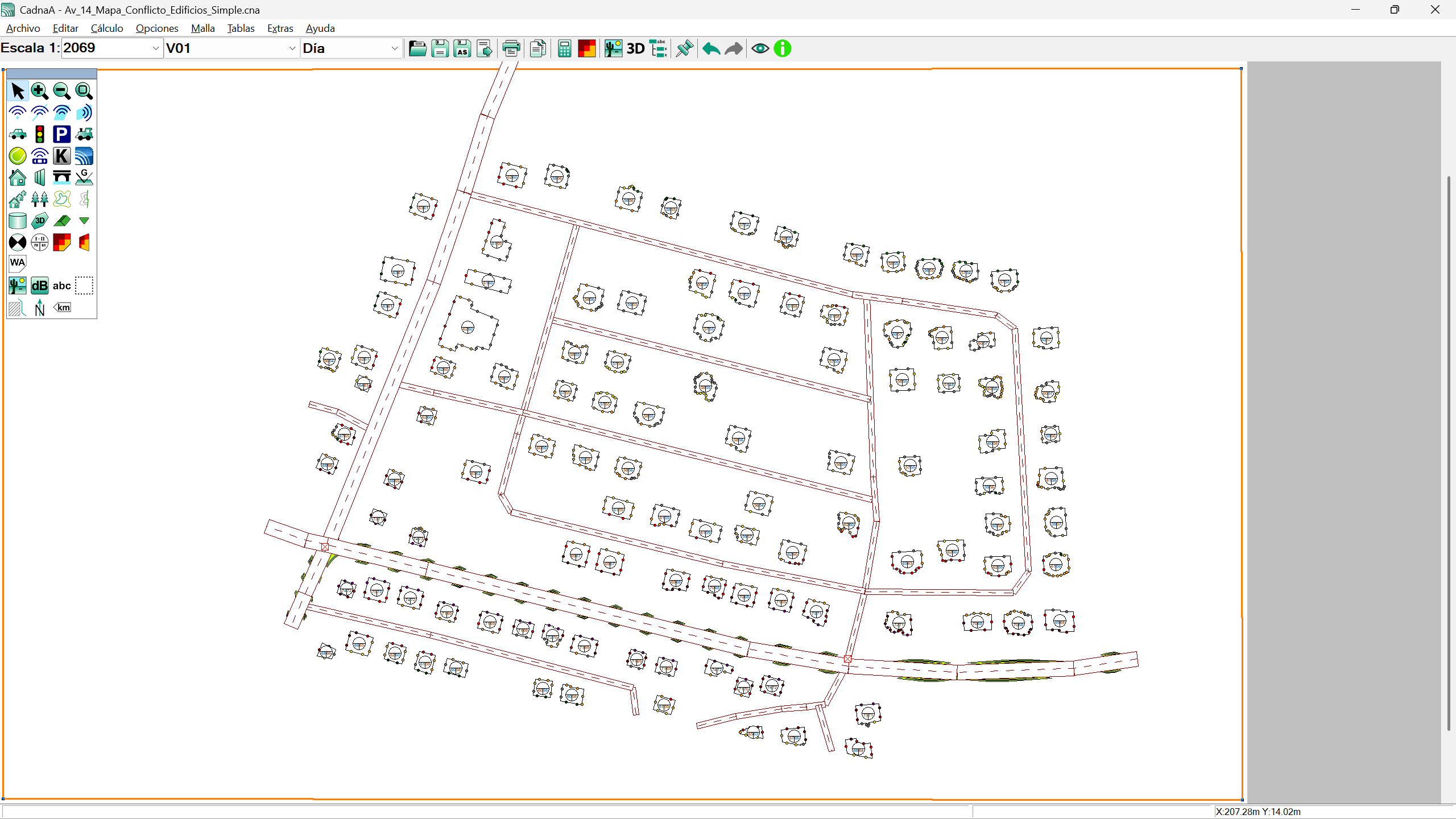

1. Open the project for which you want to make a conflict map.
2. For more security, save a copy of the project with the optionFile/Save as...

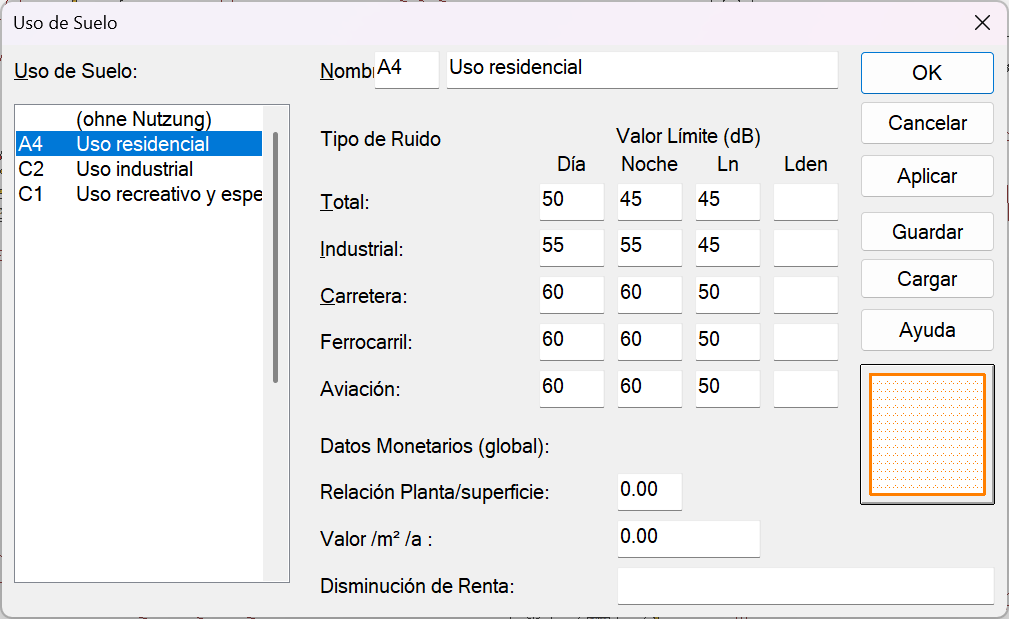

3. Access toFloor options/Us...and configure the different soil uses of the project:
4. Create the relevant soil areas on the map (in this case we will create one):

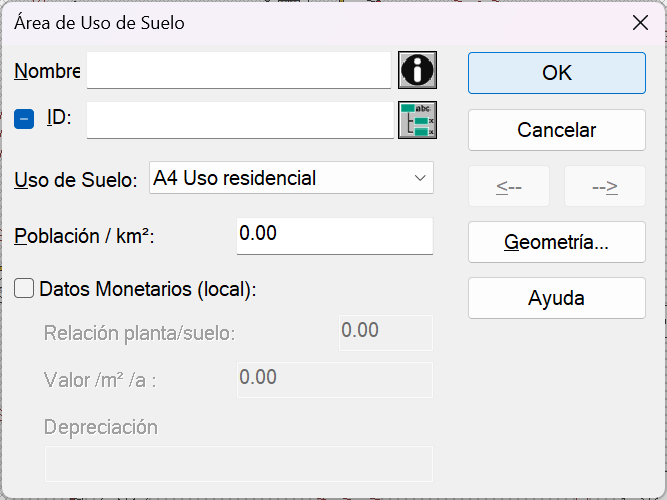

5. Double-click with the left mouse button on the perimeter of the ground area and, if necessary, allocate the population by Km^2:

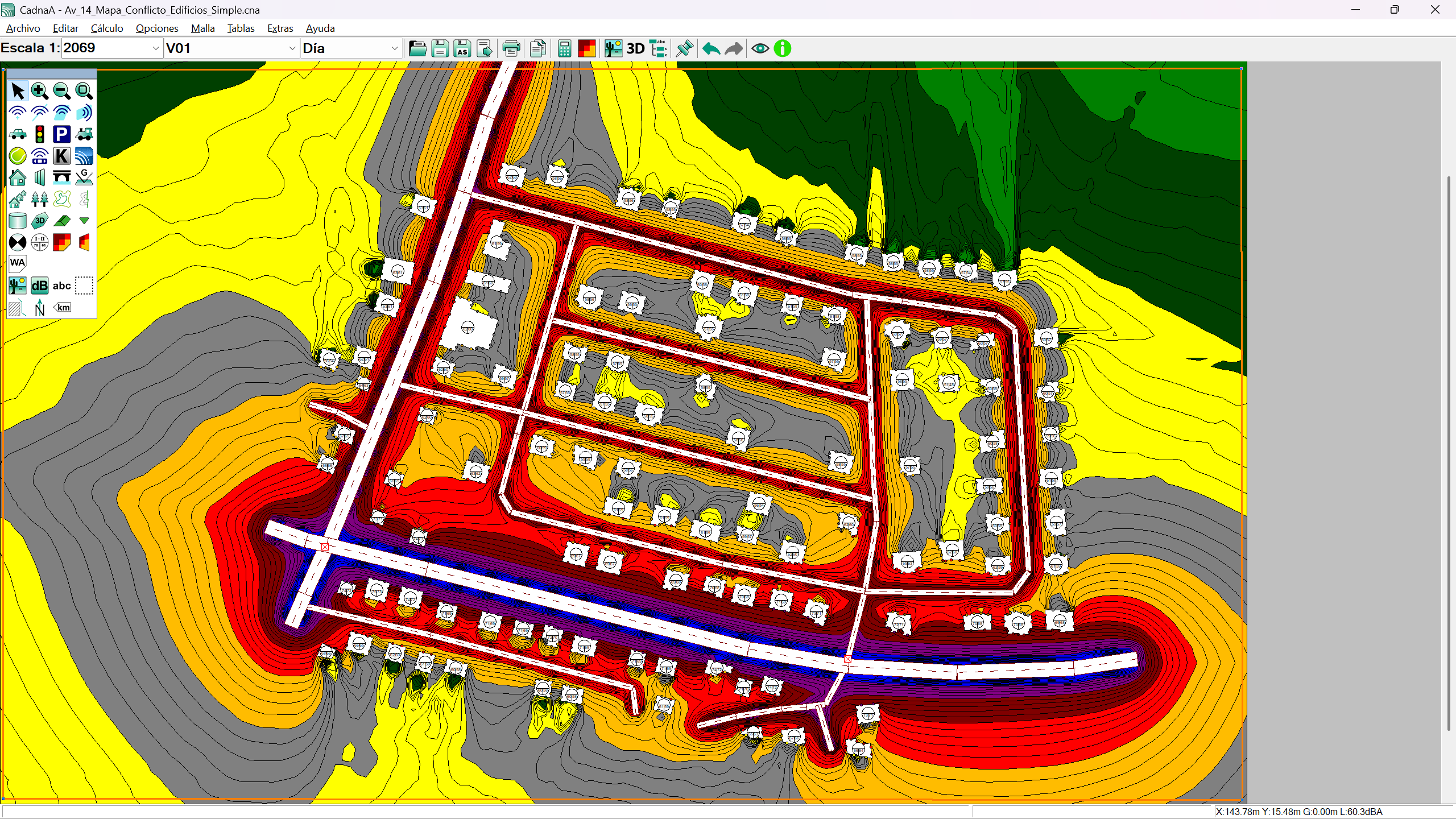

6. Configure Mesh parameters and their appearance and calculate it throughMesh/Calculate Mesh:
7. Access toExtras/Calculate Conflict Mapand pressOk ok:
Something like the following image will be displayed:
8. Access toMesh/Appearanceand inParam. Evaluation 1 (Day)click on the folder icon:
9. Select the one that suits best. In this case pal_0_20_step_2 (values between 0 and 20 dB with jumps of 2 dB)
10. Remove selection from the optionLevel Range. The following configuration should remain:

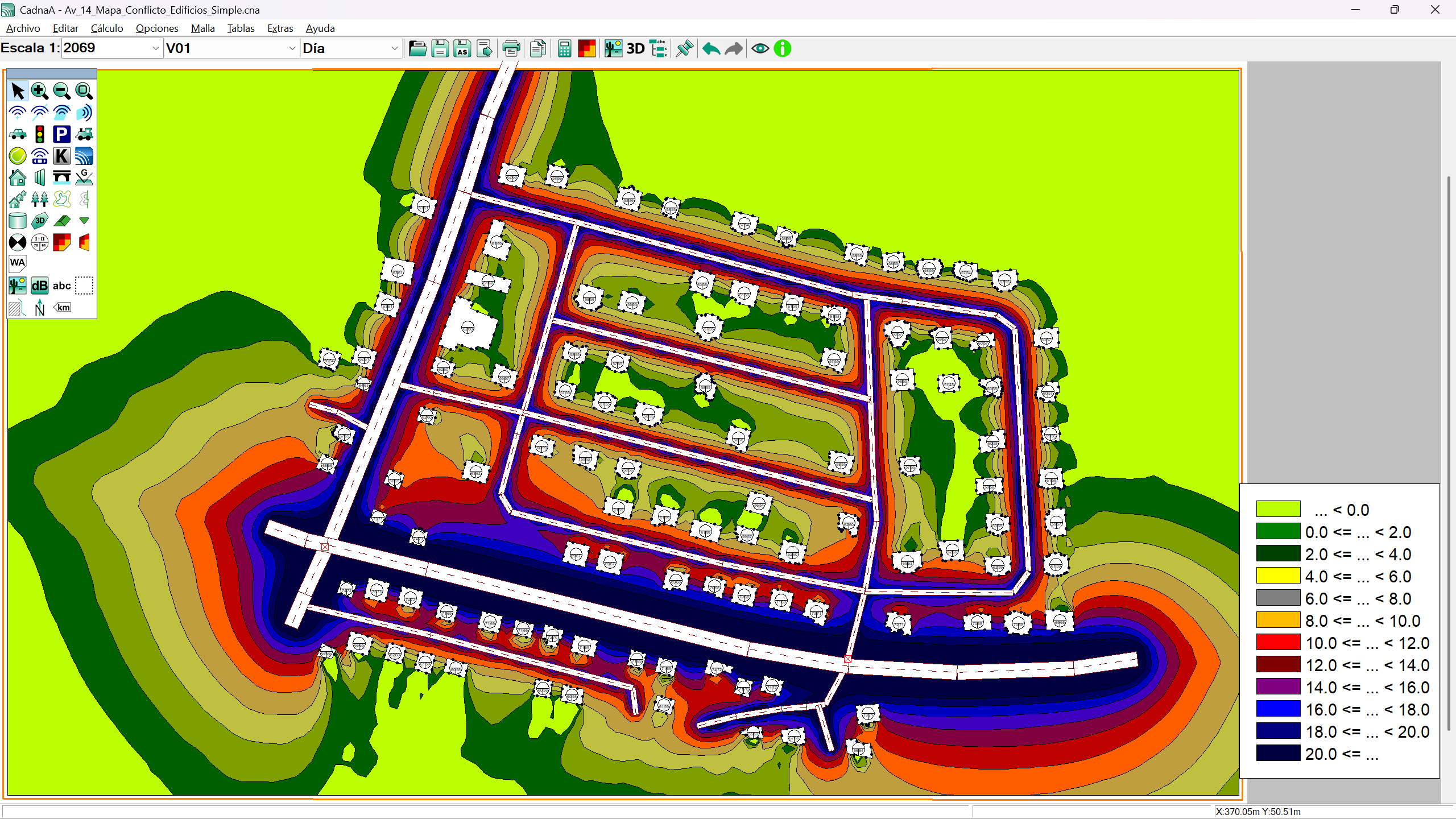

11. PressOk okand something like the following image should be shown:
To accessthe toolExtras/Calculate Conflict MapOption X is required
